Products

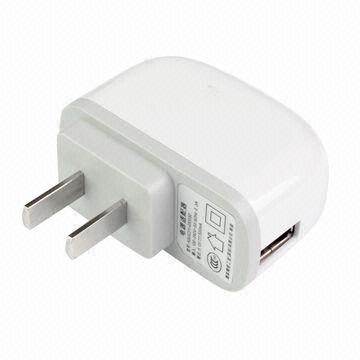

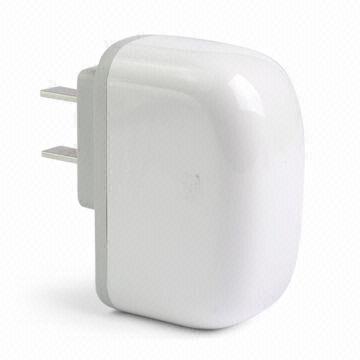

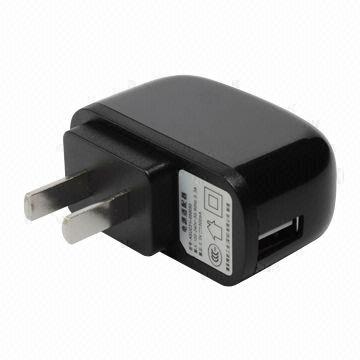

6W CN
6W CN 6W CN 6W CN

 Operation temperature-5~45

Storage temperature-20~70

Humidity35%~85%RH

Input voltage90~264VA

Input frequency47~63Hz

Input current: 0.45A(rms)@90 VAC

Inrush current30A max@240 VAC

No load power consumption0.3W max

Power6Watts ma  x

Average efficiencyEnergy Star EPS2.0 standard

Hi-Pot3000 VAC/1min/5mA

Leakage current0.25mA max.@240 VAC

Overcurrent protection120~200%

Overvoltage protection120%~150%

Short circuit protectionAutomatic recovery

Safety standardCE(EN 55022/55024;EN 61000&55013/55020)
CCC(GB9254-2008)
FCC(47CFR FCC Part 15 subpartB:2008)
