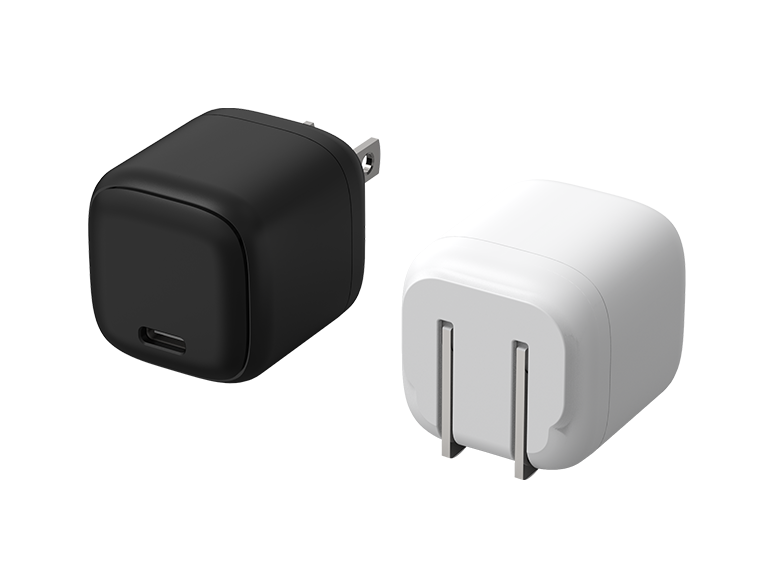

30W GaN Charger

Product Details

SPECIFICATIONS

Type:ASGaN11

Typical output:5V 3A/9V 3A/ 12V 2.25A /15V 2A/ 20V 1.5A

PPS1:3.3-11V 3A 30W Max

PPS2:3.3-16V 2.25A 30W Max

Output voltage:5V/9V/12V/15V/20V(3.3-16V)

Output current:0.1A-3.0A

Rated input voltage:100-240Vac

Input voltage range：90-264Vac

Input frequency:50/60Hz

Input current:0.7A(rms)max@90Vac

Incrush current:30A max@240 Vac

No load power consumption:0.1W max

Energy class:VI

Safety standard：IEC/UL/EN62368(GB4943)

EMC standard：EN55032，EN55035,EN61000

Part 15 Subpart B

CISPR 32,CISPR24


WORKING ENVIRONMENT

Operation temperature:-10℃～25℃

Storage temperature:-20℃～70℃

Humidity:5%～95%RH
